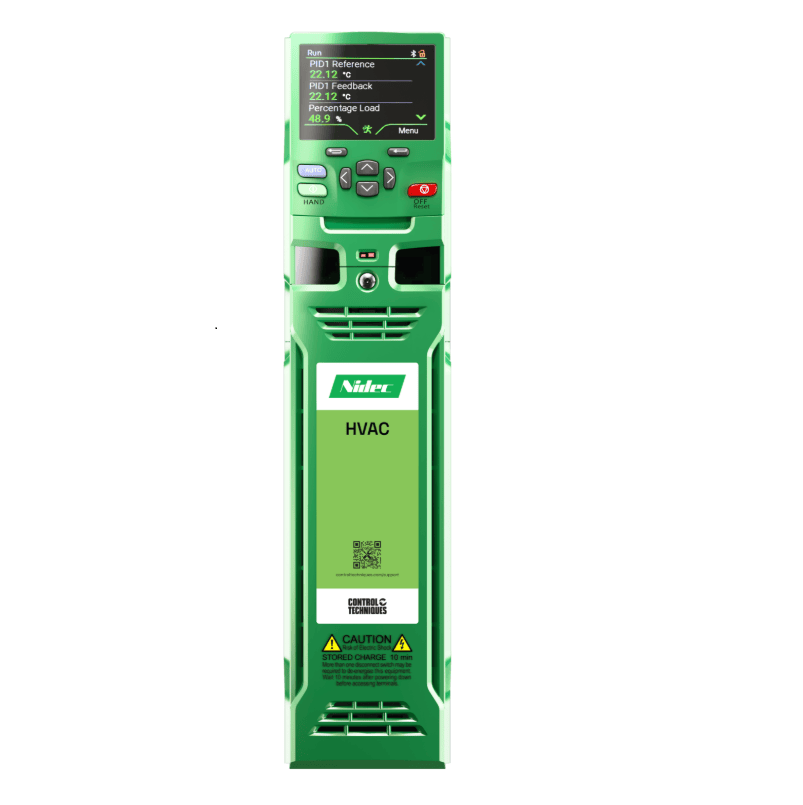

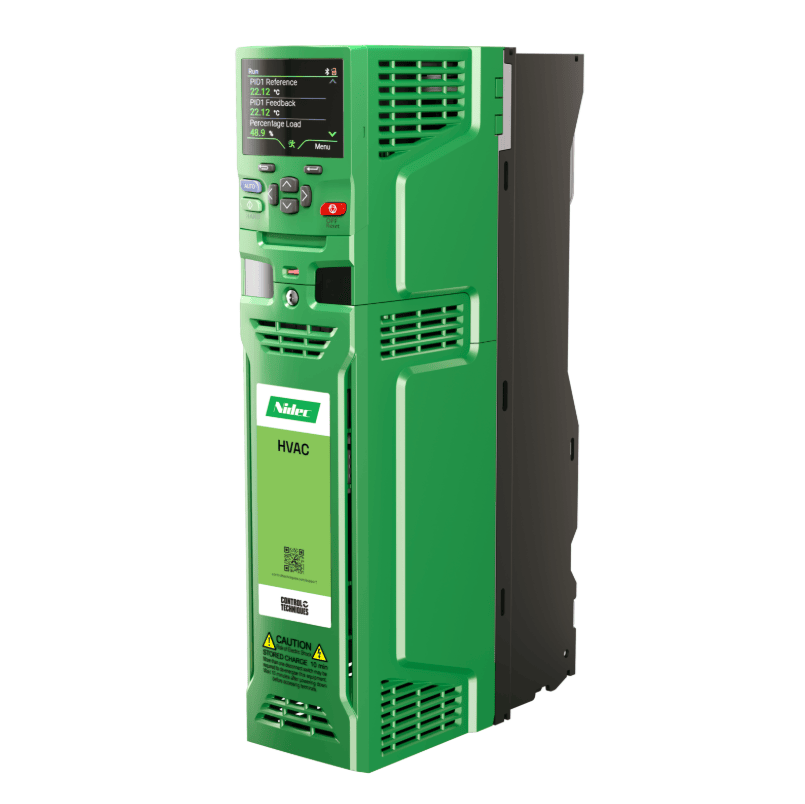

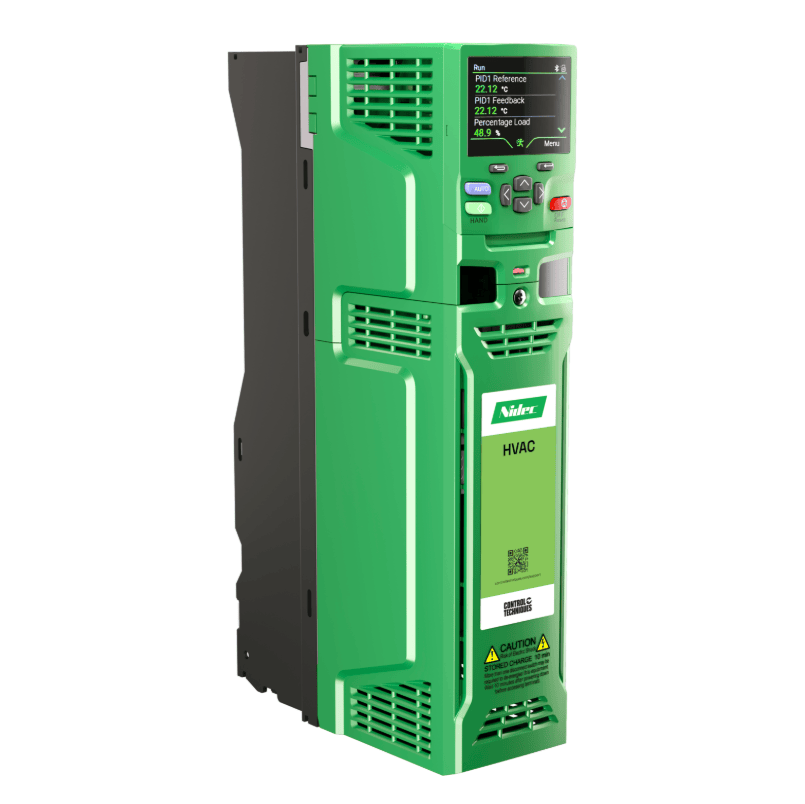

Control Techniques HVAC Drive H300 2.2kW 11A 200/240Vac 3PH H300-03200110A10100AB103

£613.90 (£736.68 inc. VAT)

SKU: H300-03200110A10100AB103 Categories: , ,

Available on back-order

Description



Description for Control Techniques HVAC Drive H300 2.2kW 11A 200/240Vac 3PH



200-240Vac, 11A – 2.2kW Normal Duty Rating

Size 3 (382 H x 83 W x 200 D mm)

Consultants and design engineers
  • All the necessary features to meet your building HVAC project specification requirements.
  • A highly reliable product and support service: Simply specify, install and forget.
Energy savings, unlocking the potential
  • Fast, easy and secure installation, commissioning and maintenance.
Total control
  • Achieves maximum building occupant comfort.
  • Optimum energy saving and value with rapid ROI.
Free 5 year warranty
  • To share our confidence in the reliability of Control Techniques, our HVAC H300 drive is eligible for Control Techniques’ extended warranty, at no extra cost.
  • It is a testament to our exceptional track record for reliability, giving you total peace of mind that your investment is protected and your site will continue to run uninterrupted.
  • Warranty terms and conditions apply.
Weight4.5 kg
Dimensions38.2 × 8.3 × 20.0 cm
Manufacturer

Nidec

Brand

Control Techniques

Model

HVAC Drive

Range

H300

Power Normal Duty Rating

2.2kW

Current Normal Duty Rating

11A

Current Output Type

AC

Frame Size

Size 3

Voltage

200-240V

Phases

3ph

Control

Open-Loop, RFC-A (Sensorless Induction Motor), RFC-S (Sensorless and feedback, via option module)

Filter

C3 built-in EMC filter

Features



Features for Control Techniques HVAC Drive H300 2.2kW 11A 200/240Vac 3PH



A complete HVAC building automation solution

The HVAC Drive H300 is optimised for fan/compressor control in HVAC applications and has all the features you would expect from a dedicated HVAC drive and more:

Building Automation Systems

Seamless integration with Building Automation Systems with the following onboard communications supported:

  1. BACnet, conformance tested to guarantee reliable operation
  2. Modbus RTU communications



Custom Software
  • Flexibility without a Building Management System with optional modules for running custom application software.



Fire mode
  • The HVAC Drive H300 has onboard Fire mode which allows the drive to continue running uninterrupted in the event of a fire. It can allow the safe extraction of smoke while the drive’s other functions are maintained.



High Efficiency Operating Modes
  • Quiet operation with Rotor Flux Control modes, high switching frequencies (up to 16 kHz).
  • Intelligent 10 speed drive cooling fan with minimum noise operation.



Conformal Coated PCB
  • High product reliability with conformally coated PCBs as standard.



Compact Dimensions
  • Among the most compact VFD in its class at every frame size, maximizing mounting flexibility.



Dual PID
  • Built-in dual process PID loops that can operate independently or be combined to provide more complex functionality.



Energy Efficiency as Standard
  • Exponential energy savings through fitting a Control Techniques Variable Frequency Drive into the application.
  • HVAC Drive H300 provides high energy efficiency, up to 98% where very little energy is lost in the conversion.
  • Motor control of super high efficiency sensor-less permanent magnet motors.
  • Dynamic Volts/Hertz energy optimization minimises power loss under low load conditions.



Energy Savings

Energy savings features promise a low total cost ownership:

  1. Sleep, Wake & VFD standby modes ensure minimal wasted energy
  2. Onboard power metering includes a cost per kWh function to track operating costs
  3. Energy savings verified with CT Energy Efficiency Calculator tool



Thermistor Monitoring
  • A temperature sensor input is available which can directly provide an analogue input without a transducer for control of fans and compressors.



Extreme Operating Conditions
  • Operate in conditions from -20°C to 55°C* (40 °C as standard, above with derating).



Extended Connectivity
  • Extended connectivity with SI option modules (POWERLINK, EtherNet/IP, Modbus TCP/IP, EtherCAT, PROFINET, PROFIBUS, DeviceNet and CANopen).



Quick Commissioning

HVAC Drive H300 portable memory devices:

  • A Smartcard enables simplified maintenance and commissioning without a PC, storing parameters and system upgrades.

Options



Options for Control Techniques HVAC Drive H300 2.2kW 11A 200/240Vac 3PH



Keypads for HVAC Drive H300 2.2kW 11A 200/240Vac 3PH

KI-HOA Keypad RTC (Supplied as standard*)

The KI-HOA Keypad RTC provides Hand-Off-Auto control. The display presents up to four lines of real text with multilanguage translation, enhancing clarity and increasing ease of use. A battery operated real-time clock allows scheduling of run and off periods and adds accurate time stamping to diagnostics to aid rapid fault resolution.

Remote HOA Keypad RTC

Remote mountable keypad, allowing flexible mounting on the outside of a panel (meets IP54/NEMA 12). The keypad offers Hand-Off-Auto control and can present up to four lines of real text with multi language translation, enhancing clarity and increasing ease of use. Battery operated real-time clock allows scheduling of run and off periods and adds accurate time stamping to logged events, aiding diagnostics.

System Integration Modules – Communications for HVAC Drive H300 2.2kW 11A 200/240Vac 3PH

SI-POWERLINK

Connects Unidrive, Commander, Digitax and the Pump Drive families to all POWERLINK networks. SI-POWERLINK serves applications ranging from simple open-loop systems through to those demanding precise motion control. The protocol is based upon standard Ethernet and provides a solution for real-time Industrial Ethernet to satisfy the requirements of industrial automation and process control.

SI-PROFIBUS

PROFIBUS interface module PROFIBUS-DP (Decentralized Peripheral) interface module enables follower connectivity. It is possible to use more than one SI-PROFIBUS or a combination of SI-PROFIBUS and other option modules to add additional functionality such as extended I/O, gateway functionality, or additional PLC features.

SI-DeviceNet

DeviceNet networking system interface module enables follower connectivity. It is possible to use more than one SIDeviceNet or a combination of SI-DeviceNet and other option modules to provide additional functionality such as extended I/O, gateway functionality, or additional PLC features.

SI-CANopen

CANopen interface module supporting various profiles, including several drive profiles.

SI-Ethernet

External Ethernet module that supports EtherNet/IP and Modbus TCP/IP and has an integrated web server that can generate emails. The module can be used to provide high speed drive access, global connectivity and integration with IT network technologies, such as wireless networking. To use multiple H300 drives in Multi-leader mode in a parallel HVAC system, each H300 drive must have an SI-Ethernet module fitted.

SI-EtherCAT

SI-EtherCAT allows the drive to connect and interface with EtherCAT networks.

SI-PROFINET

SI-PROFINET allows the drive to communicate and interface with PROFINET PLCs and networks.

System Integration Modules – Applications for HVAC Drive H300 2.2kW 11A 200/240Vac 3PH

MCi200

Second processor, providing advanced machine control using Machine Control Studio

MCi210

Adds to the MCi200 with a dual port Ethernet interface directly on the processor and additional I/O

System Integration Modules – Additional I/O for HVAC Drive H300 2.2kW 11A 200/240Vac 3PH

SI-I/O

Extended I/O interface module to increase the number of I/O points on a drive. Provides additional: 4 x Digital I/O, 3 x Analog inputs (default)/Digital inputs, 1 x Analog output (default)/Digital input, 2 x Relays

Drive interface units – Back-up for HVAC Drive H300 2.2kW 11A 200/240Vac 3PH

Smartcard

The optional Smartcard memory device can be used to back-up parameter sets, as well as copying them from one drive to another

SD Card Adaptor

Conversion device that allows an SD card to be inserted into the Smartcard slot, for parameter cloning and application programs

Drive interface units – Communications for HVAC Drive H300 2.2kW 11A 200/240Vac 3PH

KI-485 Adaptor
This adaptor can be fit in place of the drive keypad and provides additional ports to communicate via RS485. The adaptor is commonly used for programming the drive.

* Also requires an adaptor.

Downloads



Downloads for Control Techniques HVAC Drive H300 2.2kW 11A 200/240Vac 3PH


HVAC Drive H300 Brochure

HVAC Drive H300 Datasheet

HVAC Drive H300 User-Guide
